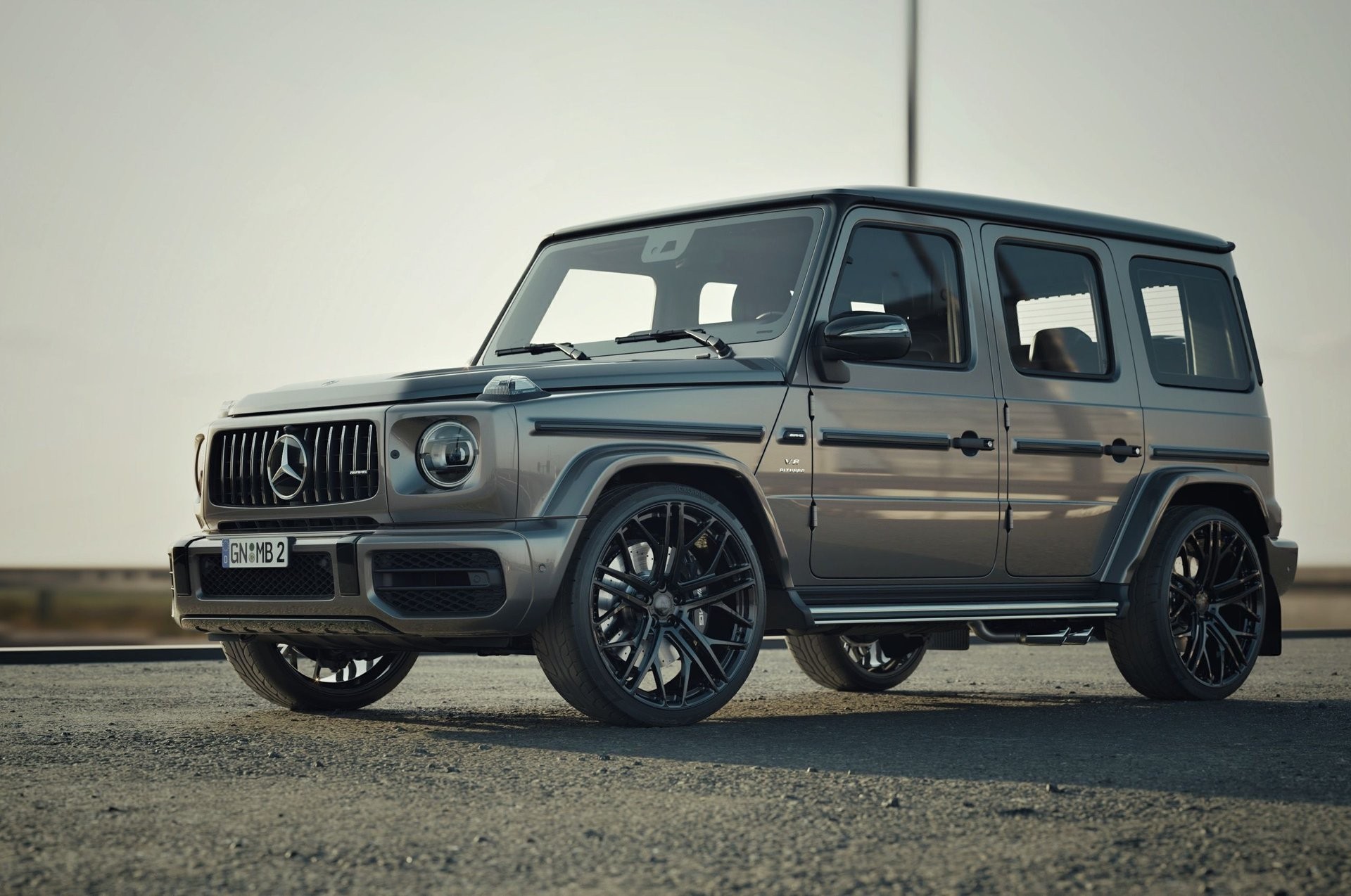

Mercedes-AMG G 63 in the DRAXLER G-Wagon project
DRAXLER / OUR PROJECTS / 01

MERCEDES-BENZ
G‑WAGON

2020–2026 G‑ClassScroll to explore ↓
01 / THE STUDY

MONUMENTAL
BY DESIGN.

The G‑Wagon is an exercise in presence. We approached this platform with restraint: forged geometry that gives the upright architecture a lower, wider and more deliberate stance.

Every DRAXLER wheel is engineered around exact fitment. No visual compromise. No generic offsets.

Forged for the G‑ClassChoose your
architecture.

Explore four DRAXLER designs. Open any wheel to see its finishes, sizes and details.

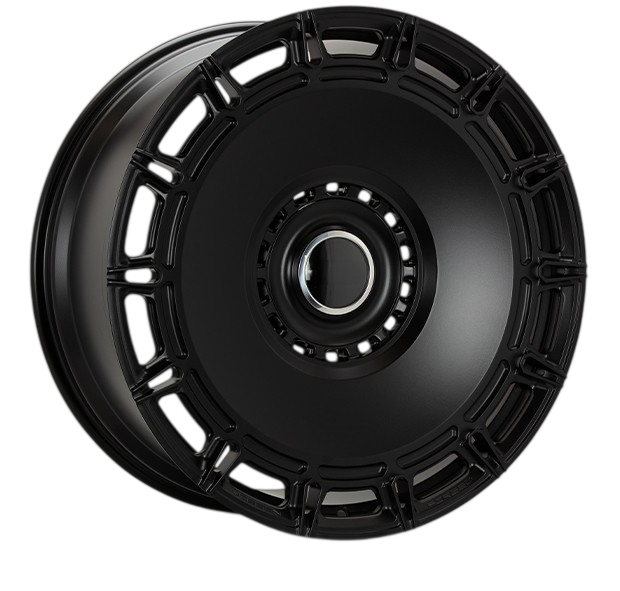

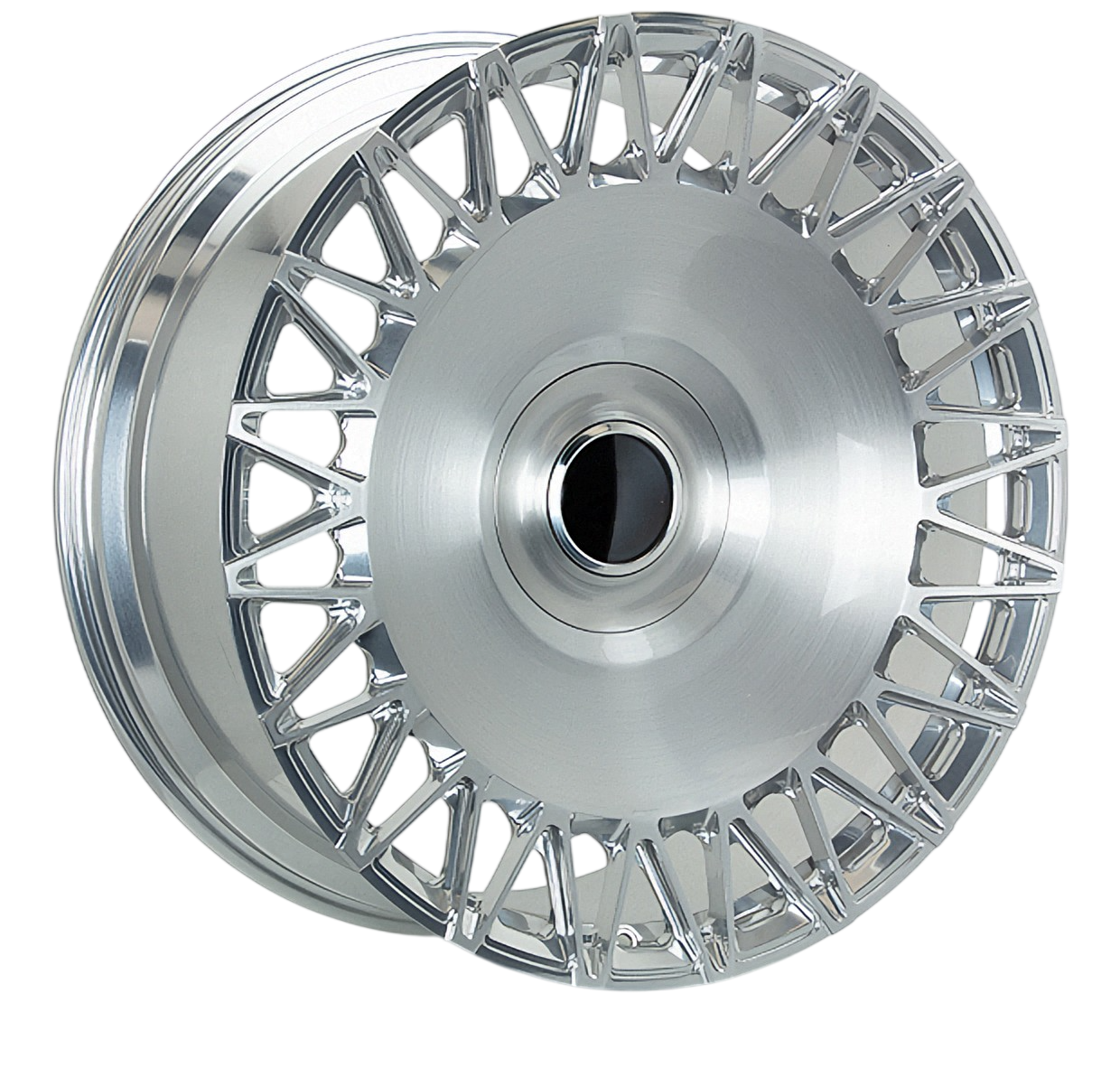

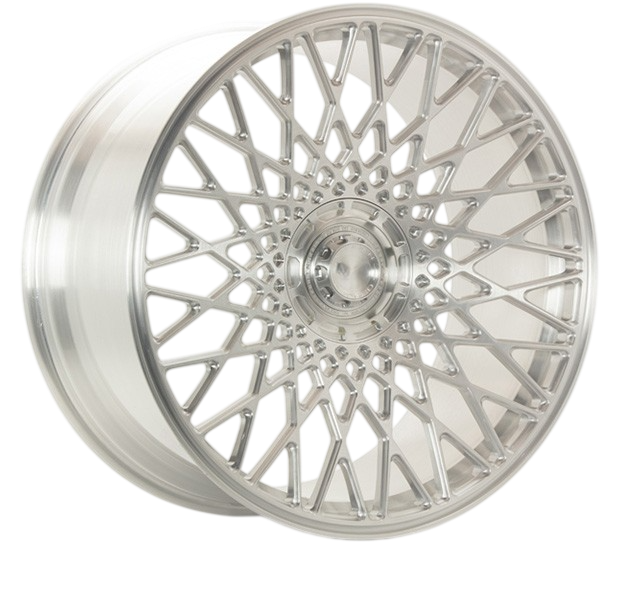

01DRX-101 forged wheelDRX-101Forged meshView wheel 02DRX-102 forged wheelDRX-102Directional multi-spokeView wheel 03DRX-103 forged wheelDRX-103Sculpted five-spokeView wheel 04DRX-104 forged wheelDRX-104Precision twelve-spokeView wheel
02 / ON THE ROAD

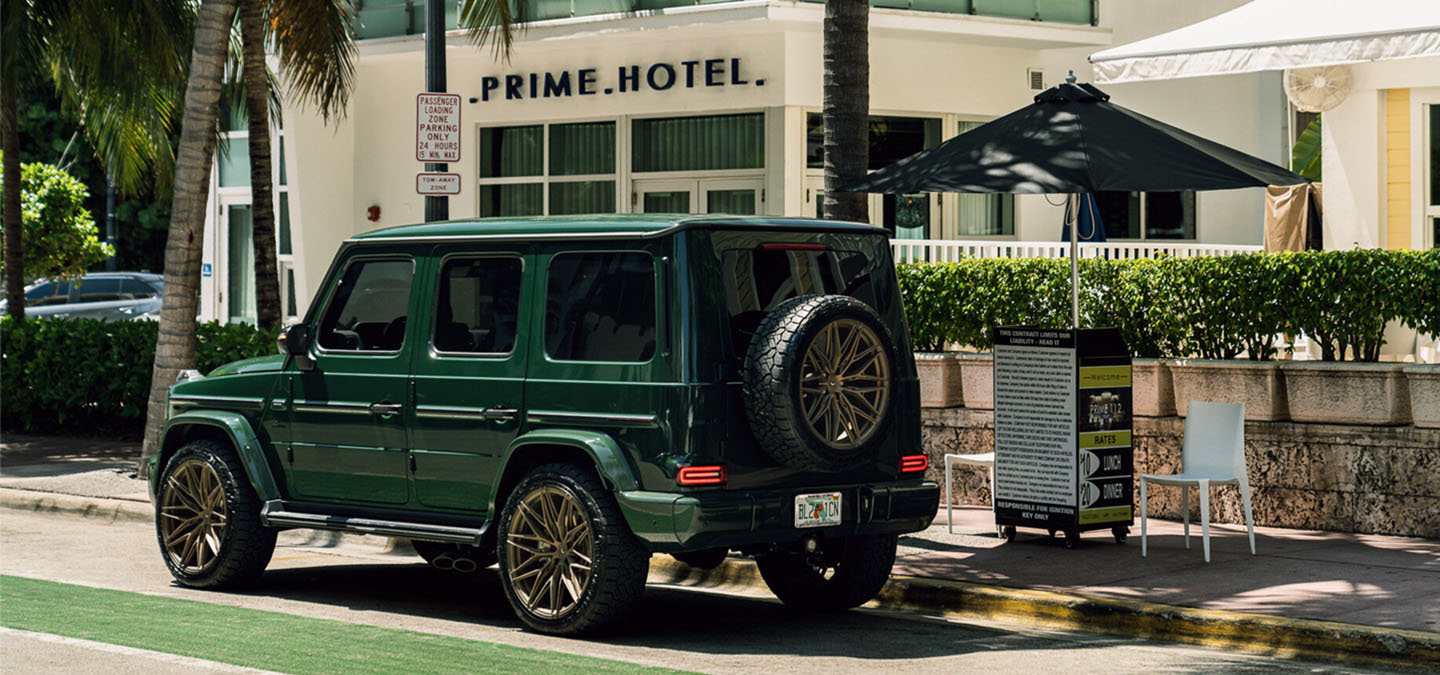

Mercedes-Benz on DRX-213
Mercedes-Benz on DRX-213+
Mercedes-Benz on DRX-101
Mercedes-Benz on DRX-101+

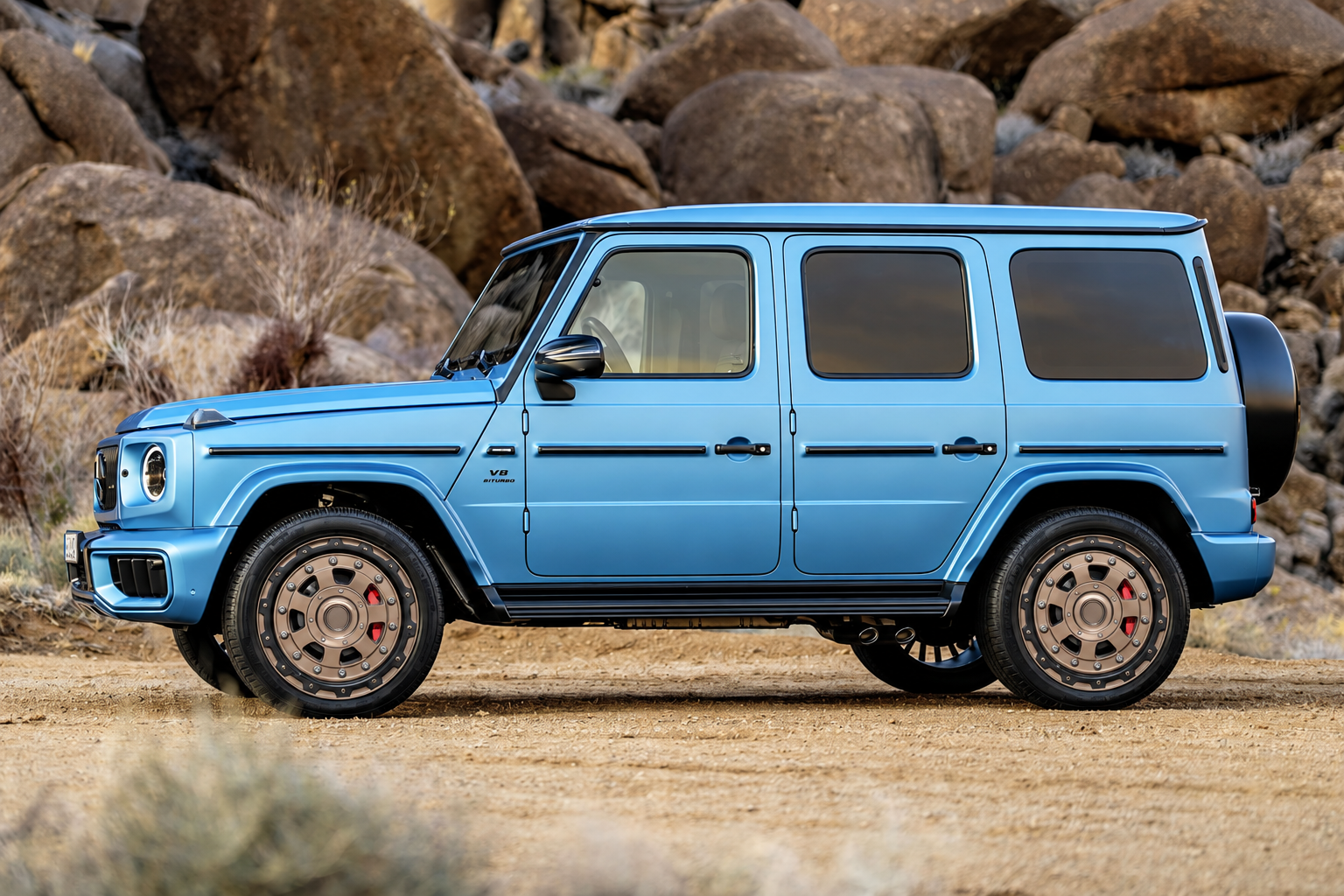

Mercedes-Benz on DRX-305
Mercedes-Benz on DRX-305+
03 / FITMENT GUIDE

G‑WAGON
WHEEL FITMENT

The reference data our engineers start from when building forged wheels for the Mercedes-Benz G-Class. Use it as a baseline — final specification is always confirmed against your own vehicle.

Fitment at a glance

Platform
W463A (2018–2024) / W465 (2024–)
Bolt pattern (PCD)
5×130
Centre bore
84.1 mm
Wheel fasteners
M14×1.5 wheel bolts, radius (ball) seat
Factory AMG G 63 wheel
20″ / 21″ / 22″ — 22×10J ET36
Factory AMG G 63 tyre
295/40 R22 (22″ package)
Gross vehicle weight (AMG G 63)
≈ 3,200 kg
Minimum recommended wheel load rating
≈ 1,040 kg per wheel
Factory specifications · DRAXLER recommendations · Engineering notes
04 / INTERACTIVE FITMENT

BUILD YOUR
G‑WAGON

Only G‑Wagon. Every compatible DRAXLER wheel. Explore the stance before the first billet is cut.

Mercedes G-Class with forged wheels
05 / ENGINEERED INDIVIDUALITY

THE DETAIL
IS THE DESIGN.

Wheel width, offset, centre bore and finish are not options added at the end. They are the starting point of a DRAXLER build.

For the G‑Class, the result is a composed silhouette that reads as factory-intentional — from the first glance to the final millimetre.

06 / YOUR BUILD

MAKE IT
YOURS.

Start with the G‑Wagon configurator, then let us engineer the final specification around your vehicle.

Configure G‑Wagon ↗Speak to DRAXLER
07 / QUESTIONS

Q&A

Which G-Wagon model is represented?+

The interactive study is built around the 2025 Mercedes-Benz G-Class AMG G 63. The fitment approach applies across the current W463 generation, subject to final measurements.

Can I configure every DRAXLER design?+

Use the configurator to explore the compatible DRAXLER wheel library on the G-Wagon model. Final availability is confirmed against brake clearance, diameter, width and offset.

Are the finishes shown final?+

They are a visual reference. Every forged set is made to order, so colour, metal finish, hardware and graphic detail can be tailored to the final brief.

How do I start a bespoke order?+

Choose a wheel in the configurator, select Finalize, and share your contact details. The DRAXLER team will return with a tailored fitment proposal.
